The Azure AD Terraform Provider has finally gotten support for Entitlement Management, let’s test it out! But let’s first discuss a few scenarios where this can come in handy.
Scenario 1 – Azure Landing Zones
In an Azure Landing Zones environment, you may have a large set of landing zones where your different developer teams may have access. Some teams may be internal, some external and some mixed. A nice way to establish these landing zones is by using the concept of subscription vending machine, where you use Terraform to establish everything ranging from the subscription, virtual network, virtual hub connection, policies, enterprise scale archetype association, service principals for deployment and so on. Now you can also create access packages, where you automatically provision access packages for each of your landing zones, such as “Azure Landing Zone – Service X – Operators” or similar.
Scenario 2 – An access package for each “something”
Imagine you want to create a standardized access package for each “something” you have, such as Teams, GitHub Repos, Azure Key Vault, Azure Subscription, etc. Now you can!
Terraform has powerful features for looping through lists, creating resources (an access package is a resource in Terraform) for each of them, with different properties. This means that you could have Terraform create an access package per GitHub Repo in your environment, or similar.
Scenario 3 – Have you tried the Graph API?
Unless you are a super expert in PowerShell and Microsoft Graph, creating access packages, policies, etc. is a nightmare! With Terraform, this becomes much easier.
Let me show you
We will run Terraform locally this time, but we can easily run this is Azure DevOps Pipelines, GitHub Actions, or similar. All code is available here.

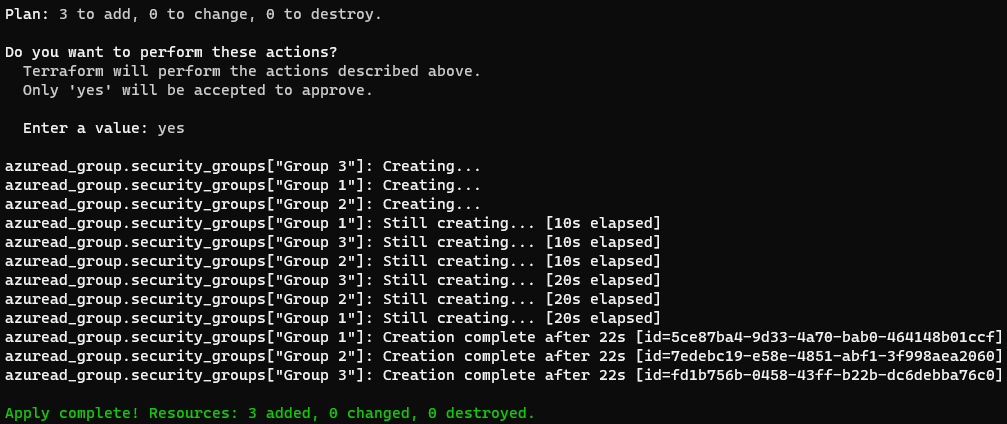

Let’s start by creating a few Azure AD groups:
locals {
security_groups = ["Group 1", "Group 2", "Group 3"]
}
resource "azuread_group" "security_groups" {
for_each = toset(local.security_groups)
display_name = each.key
security_enabled = true
mail_enabled = false
owners = [data.azuread_client_config.current.object_id]
}

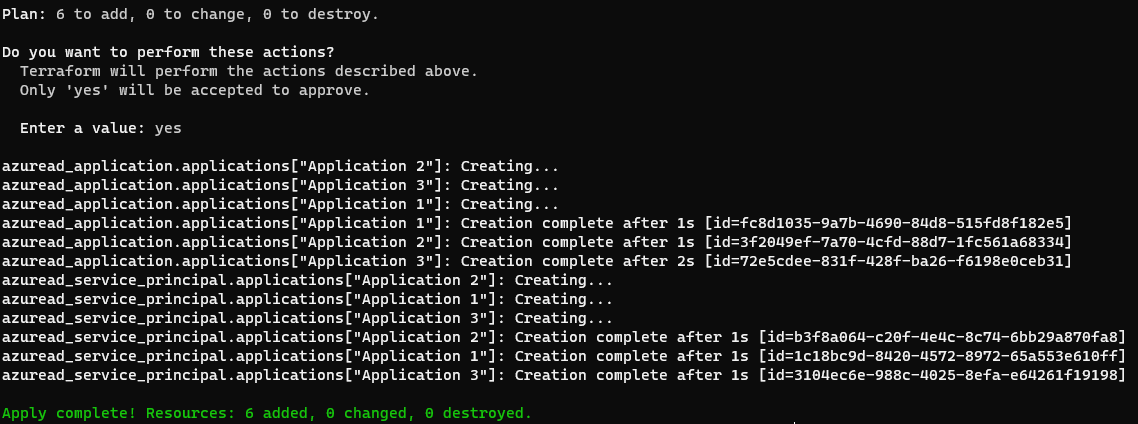

Let’s also create a few applications:
locals {
applications = ["Application 1", "Application 2", "Application 3"]
}
resource "azuread_application" "applications" {
for_each = toset(local.applications)
display_name = each.key
owners = [data.azuread_client_config.current.object_id]
}
resource "azuread_service_principal" "applications" {
for_each = azuread_application.applications
application_id = each.value.application_id
}

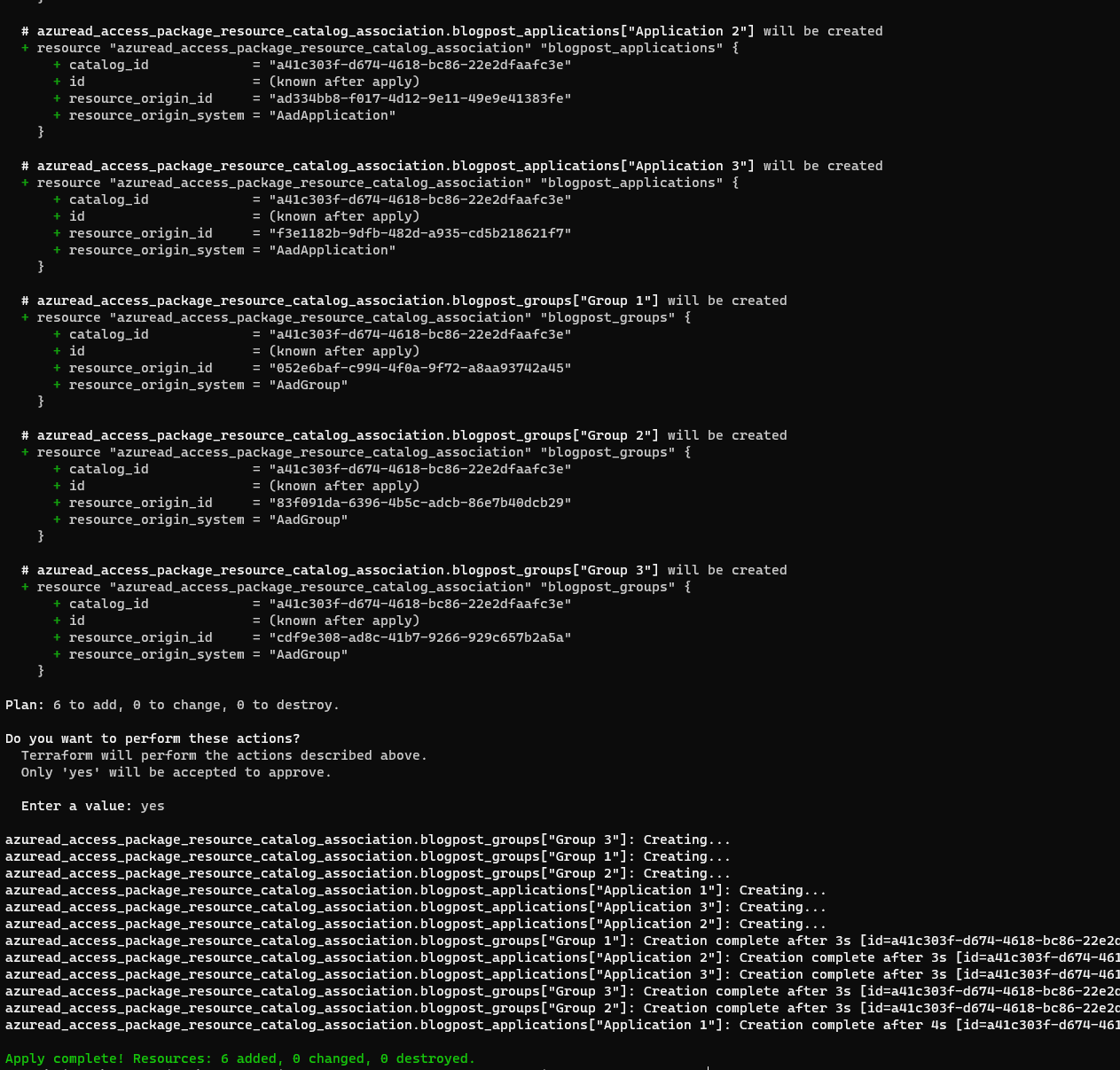

Now we are ready to create our catalog, and link our groups and applications:
resource "azuread_access_package_catalog" "blogpost" {
display_name = "Blogpost"
description = "Catalog for blogpost"
published = true
}
# Assign all security groups we have created to our catalog
resource "azuread_access_package_resource_catalog_association" "blogpost_groups" {
for_each = azuread_group.security_groups
catalog_id = azuread_access_package_catalog.blogpost.id
resource_origin_id = each.value.object_id
resource_origin_system = "AadGroup"
}
# Assign all security groups we have created to our catalog
resource "azuread_access_package_resource_catalog_association" "blogpost_applications" {
for_each = azuread_service_principal.applications
catalog_id = azuread_access_package_catalog.blogpost.id
resource_origin_id = each.value.object_id
resource_origin_system = "AadApplication"
}

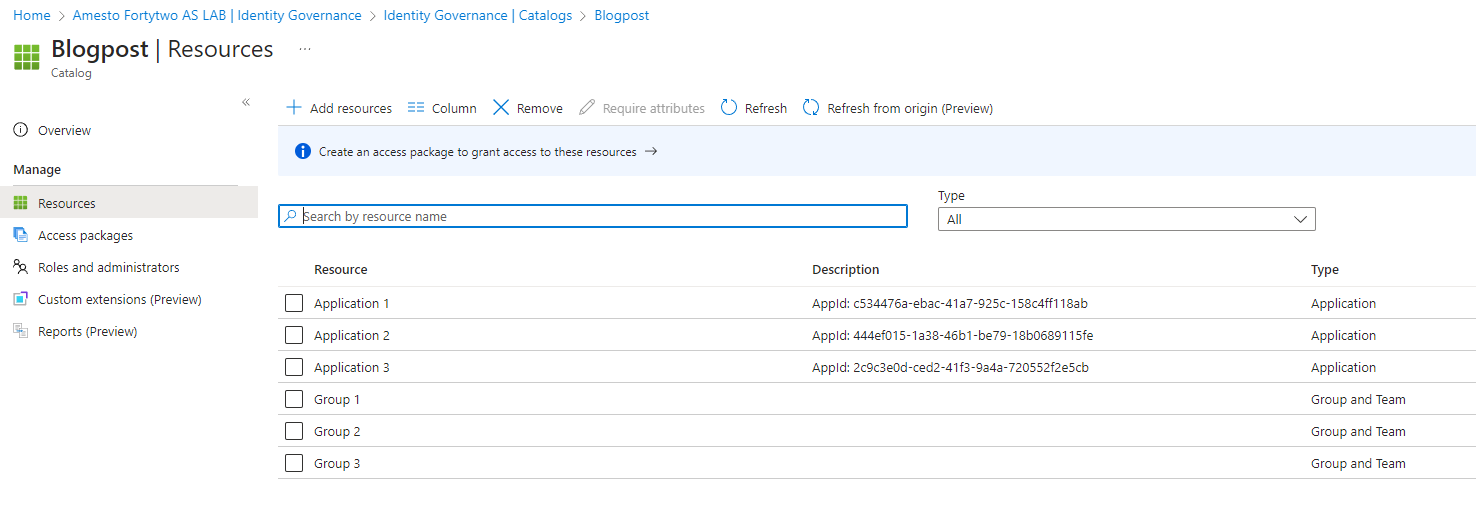

At this point, we have our catalog created, and three groups and three applications linked as resources:
Let’s create our access packages!
# Create an access package for our three applications
resource "azuread_access_package" "all_applications" {
catalog_id = azuread_access_package_catalog.blogpost.id
display_name = "All applications"
description = "Provides access to the three applications we created"
}
# Associate all applications to our above acess package
resource "azuread_access_package_resource_package_association" "all_applications" {
for_each = azuread_access_package_resource_catalog_association.blogpost_applications
access_package_id = azuread_access_package.all_applications.id
catalog_resource_association_id = each.value.id
}
# Create an access package for our three groups
resource "azuread_access_package" "all_groups" {
catalog_id = azuread_access_package_catalog.blogpost.id
display_name = "All groups"
description = "Provides access to the three groups we created"
}
# Associate all groups to our above acess package
resource "azuread_access_package_resource_package_association" "all_groups" {
for_each = azuread_access_package_resource_catalog_association.blogpost_groups
access_package_id = azuread_access_package.all_groups.id
catalog_resource_association_id = each.value.id
}
# Create an access package for all groups and applications we have created
resource "azuread_access_package" "everything" {
catalog_id = azuread_access_package_catalog.blogpost.id
display_name = "Everything"
description = "Provides access to the three groups and the three applications we created"
}
# Associate all groups and applications to our above acess package
resource "azuread_access_package_resource_package_association" "everything" {
for_each = merge(azuread_access_package_resource_catalog_association.blogpost_groups, azuread_access_package_resource_catalog_association.blogpost_applications)
access_package_id = azuread_access_package.everything.id
catalog_resource_association_id = each.value.id
}

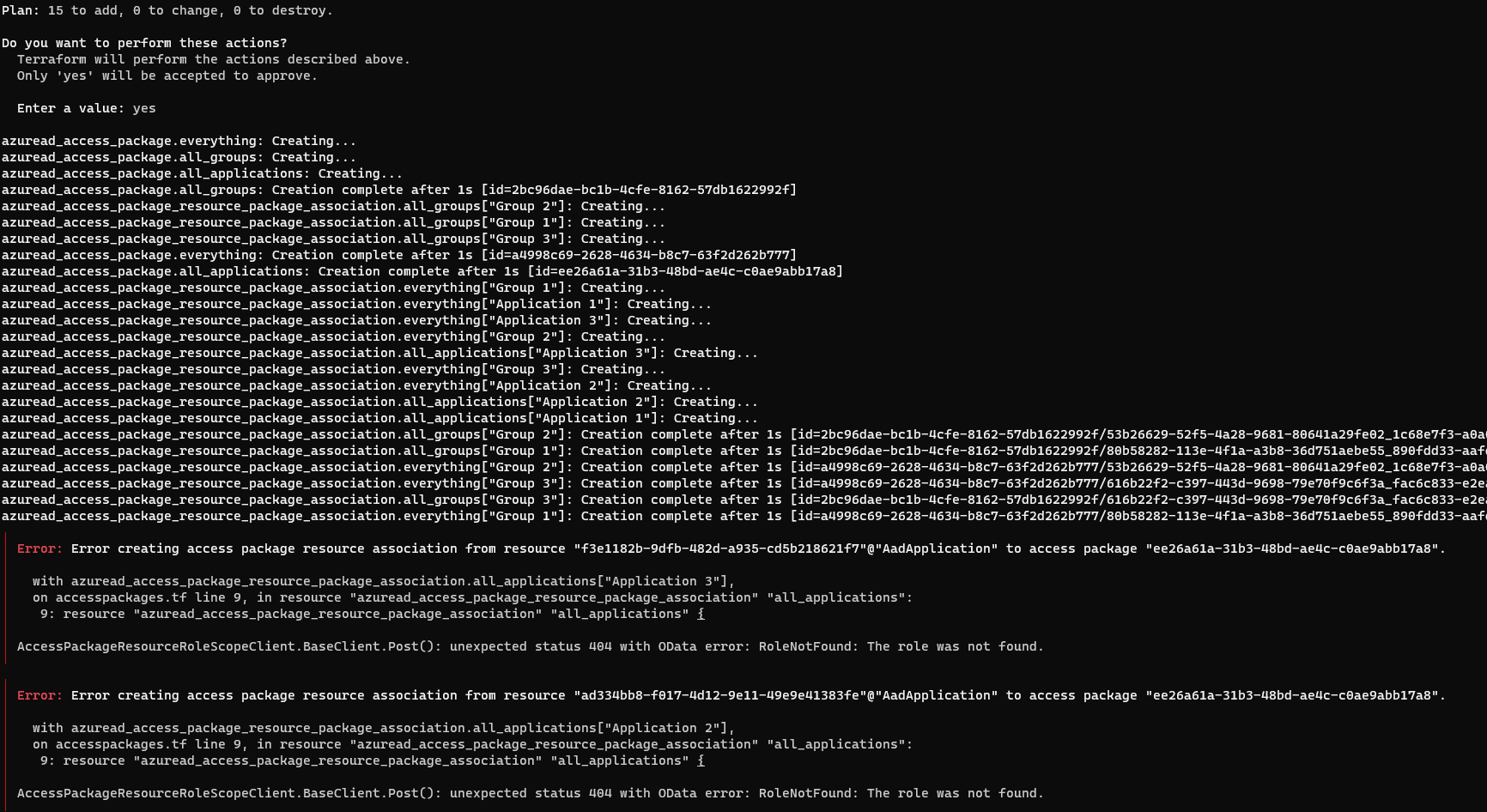

Almost awesome! I actually now see that the developer that contributed the entitlement management feature to the Azure AD provider has made a poor assumption, that the following roles are present:
This is only true for groups, and will not work for applications. I’ll report this back and get it fixed, or fix it myself.
So let’s continue for now, only with access packages that contains groups:
# Create an access package for our three applications
resource "azuread_access_package" "all_applications" {
catalog_id = azuread_access_package_catalog.blogpost.id
display_name = "All applications"
description = "Provides access to the three applications we created"
}
# Create an access package for our three groups
resource "azuread_access_package" "all_groups" {
catalog_id = azuread_access_package_catalog.blogpost.id
display_name = "All groups"
description = "Provides access to the three groups we created"
}
# Associate all groups to our above acess package
resource "azuread_access_package_resource_package_association" "all_groups" {
for_each = azuread_access_package_resource_catalog_association.blogpost_groups
access_package_id = azuread_access_package.all_groups.id
catalog_resource_association_id = each.value.id
}
# Create an access package for all groups and applications we have created
resource "azuread_access_package" "everything" {
catalog_id = azuread_access_package_catalog.blogpost.id
display_name = "Everything"
description = "Provides access to the three groups and the three applications we created"
}
# Associate all groups and applications to our above acess package
resource "azuread_access_package_resource_package_association" "everything" {
for_each = azuread_access_package_resource_catalog_association.blogpost_groups
access_package_id = azuread_access_package.everything.id
catalog_resource_association_id = each.value.id
}

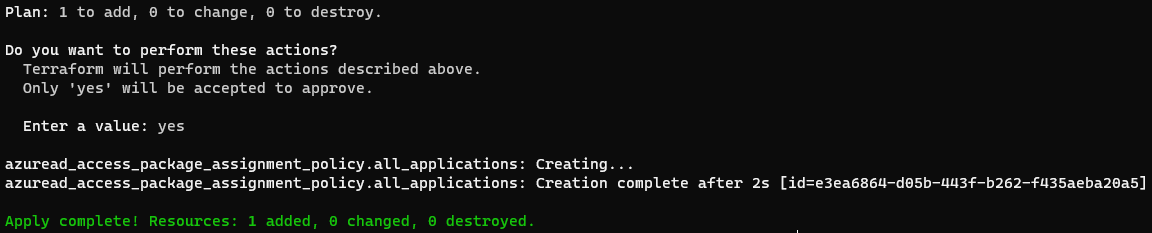

Now, the last thing remaining is to create a policy for one of our access packages:
resource "azuread_access_package_assignment_policy" "all_applications" {
access_package_id = azuread_access_package.all_applications.id
display_name = "Everyone can request"
description = "Everyone can request"
duration_in_days = 90
requestor_settings {
scope_type = "AllExistingDirectoryMemberUsers"
}
approval_settings {
approval_required = true
approval_stage {
approval_timeout_in_days = 14
primary_approver {
object_id = azuread_group.security_groups["Group 1"].object_id
subject_type = "groupMembers"
}
}
}
assignment_review_settings {
enabled = true
review_frequency = "weekly"
duration_in_days = 3
review_type = "Self"
access_review_timeout_behavior = "keepAccess"
}
}

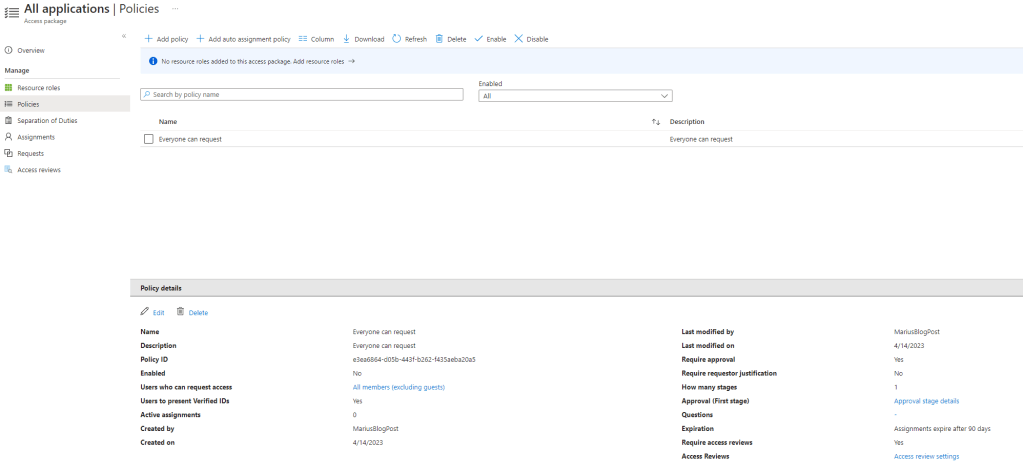

And now we can find that policy, working like a charm:
This is a great addition to the Azure AD provider for Terraform, and I’m looking forward to seeing a few added features, such as:
- Fixing the ability to assign apps to access packages
- Support for auto assignment policies
